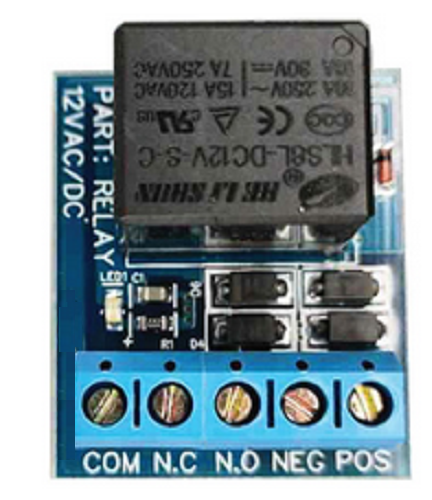

Relay Board 12V 10A

A specialized electronic module used to bridge low-power alarm signals to high-voltage or high-current devices.

It acts as an electrical switch that allows a delicate, low-current signal (like a Paradox alarm's PGM output) to safely trigger larger electrical loads.

KEY TECHNICAL SPECIFICATIONS:

• Operating Voltage: 12V DC or 16V AC operation
• Switching Capacity: Up to 10A at 12V DC
• Contacts: Potential-free (dry), normally open (NO) and normally closed (NC) options
• Indicators: Onboard LED status lights to show when the relay is triggered
• Protection: Includes back-EMF (Electro-Motive Force) protection to prevent electrical spikes from damaging your alarm panel

COMMON SECURITY APPLICATIONS:

• Heavy Lighting: Triggering large 220V floodlights or garden lights when a perimeter beam or alarm is tripped.
• Sirens and Strobes: Switching high-current external sirens, strobe lights, or heavy-duty sounders that pull too much power for an alarm board's built-in siren driver.
• Radio Transmitters: Isolating and converting an alarm output so it can trigger a backup radio transmitter or GSM communicator.
• Access Control: Operating gate motors or electromagnetic door locks from a low-voltage trigger.
