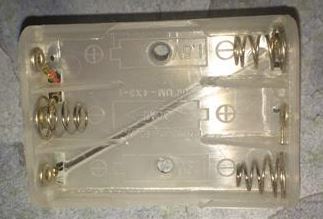

Battery Holder For PMD2P (AAAX3)

A replacement battery holder for the Paradox PMD2P wireless outdoor/indoor PIR motion detector. It securely houses three AAA (AAAx3) alkaline batteries to provide continuous, wireless power to your security sensor.

QUICK SPECS & DETAILS:

• Device Compatibility: Paradox PMD2P Wireless Pet-Immune PIR Detector
• Battery Requirements: 3 x AAA Alkaline batteries
• Part Number: PDX PA3632
• Function: Snaps into the back-plate or casing of the motion sensor to keep cells perfectly aligned and connected.

HOW TO REPLACE THE BATTERIES:

If your Paradox alarm panel is giving you a "Low Battery" alert for your PMD2P detector, replacing the batteries is simple:

• Remove the Detector: Push the unit up from the bottom to unclip it from the wall/back-plate.
• Access the Holder: Pull out the battery compartment on the back.
• Swap Batteries: Take out the old batteries and insert three new AAA batteries. Ensure the positive and negative ends are properly aligned to the markings inside the holder.
• Re-initialize: Press and release the tamper switch and wait about 60 seconds for the unit to initialize before snapping it back into the wall bracket.
