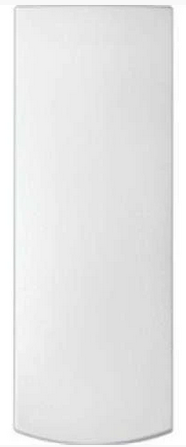

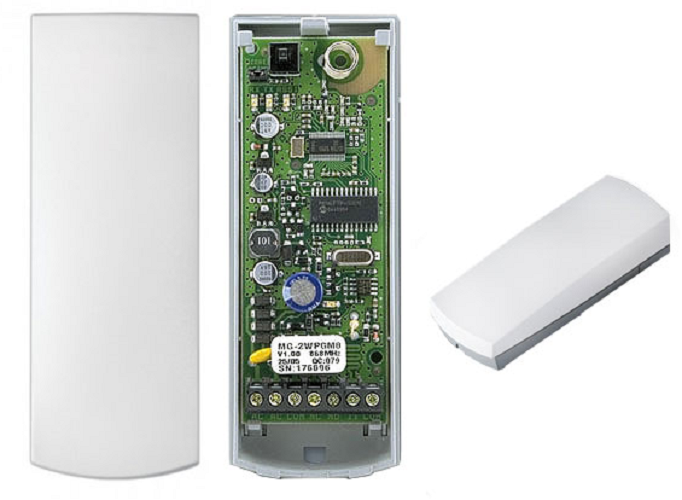

2-Way Wireless PGM 433mhz (2WPGM)

A versatile wireless expansion module used to add a programmable relay output to compatible Paradox alarm systems (such as the Magellan and Spectra series). It acts as a wireless switch that lets you remotely control external electrical devices.

COMMON APPLICATIONS:

• Gate Motors & Garage Doors: Trigger a gate or garage to open/close via the Paradox Insite Gold mobile app.
• Appliances: Control high-voltage devices like pool pumps or outdoor lights.
• Auxiliary Devices: Interface with electric fences, external sirens, or third-party GSM radios.

KEY FEATURES:

• Two-Way Communication: The module sends and receives commands and confirms with the main console when an action has been executed successfully.
• Backup Alarm Reporting: If the module loses its wireless connection to the main alarm console, it can automatically trigger the PGM output to notify you of a communication failure.
• Programmable Relay: Features one heavy-duty 5A relay output that can be programmed to latch or pulse based on timers or system events.
• Universal Transmitter Input: Includes a hardwired zone input (supports Normally Open/Normally Closed) to add an additional sensor near the module.
• Flexible Power: Can be powered via low voltage AC (6V to 16.5V) or DC (5V to 30V).
• Wireless Range: Typical residential wireless range is between 35 meters (115 ft) to 70 meters (230 ft), depending on your Paradox panel.
